Laboratory High Purity Gas Generators
- PEUS INSTRUMENTS High Purity, High Technology Generators
- State of Art Design from Germany
- Output Flow : 100 ml/min to 12000 ml/min
- Built in Auto Water Refill
- Maintenance Free : Auto Dryer Regeneration
- User Friendy : Touch screen Control
- Diagnostic Screen
- Safety Features : Alarms
- Low Running cost
High & Ultra High Purity NITROGEN Generators
- Purity: from 99.995% to 99.9999 % HC < 0.1 ppm
- Capacity: from 100 to 600 Nml/min,up to 6 Nl/min with cogeneration
- Pressure: 10 bar max. (140 psi max)
- Presentation: bench casing, 19" rack

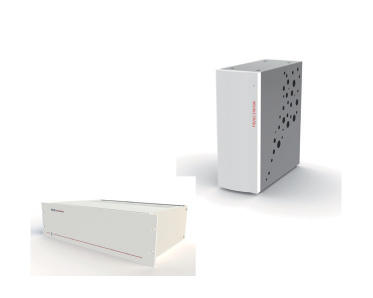

FID / GC Stations
- H2 Purity: from 99.995% to 99.9999 %
- H2 Capacity: from 100 to 500 Nml/min
- AIR Capacity: 1.5 to 6 Nl/min
- On board oil free & silent compressor
- Presentation: floor casing , 19" rack

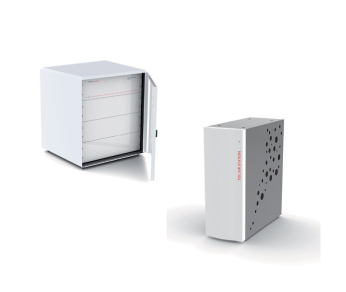

Ultra Zero AIR -TOC Stations
- 1,5 and 3 Nl/min, Silicon free
- < 1 ppm CO2; < 0,05 ppm HC, NOx, CO
- < -70°C dew point
- On board oil free & silent compressor
- Presentation: floor casing , 19" rack

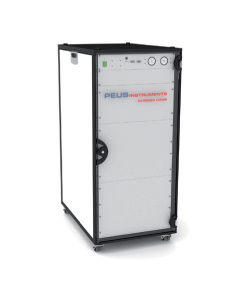

NITROGEN Stations for LCMS - 35 Nl/min, 60 Nl/min
- N2 for nebulizer and dryer: up to 35 Nl/min, 60 Nl/min,> 99.5 %, HC < 0,1 ppm
- N2 for collision cell: up to 200 Nml/min,> 99,999 %, HC < 0,1 ppm
- On board oil free & silent compressor
- Presentation: floor casing

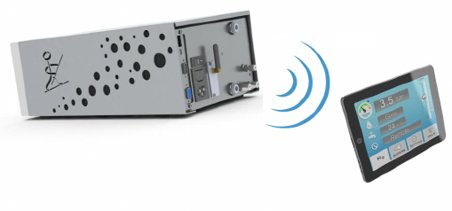

Communications
Each instrument is equipped with high performance communication interfaces (RS485, Ethernet and WLAN (Options)) allowing to realise very flexible gas networks with either local or central control.
The control software handles all safety functions, the automatic pressure regulation, functioning status and ensures reliable communications. All gas generators modules are easy to install, reliable, safe and pleasant to operate.
